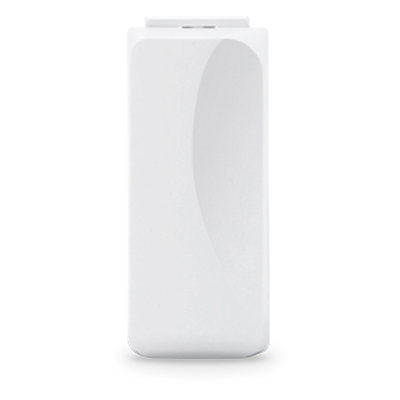

Garage Tilt Sensor

This sensor detects if a garage door is open or closed, sending a signal to your alarm & notifying you.

Garage Tilt Sensor

Features & Tips

• Open and Closed Status Notifications
• Wireless – No Wiring Required
• Tamper-proof cover

Where should I put this?

Our tilt sensors should be installed on any garage doors you wish to monitor. When placed on the top inside panel of your garage door, the sensor will send “opened” & “closed” signals to your system if the sensor’s pitch exceeds 45 degrees.

How many do I need?

We recommend you have 1 per garage door you wish to secure.

Anything else I should know?

With our free mobile app you can configure notifications on your smartphone so you can receive an alert whenever your door is detected as “opened”.

Need to expand your existing Think Protection system?

Call 1-855-768-4465 to add equipment anytime

Technical details


3.25 x 1.40 x 1.05 inches

8.3 x 3.6 x 2.7 cm


433.92 MHz

Maximum Humidity

85% non-condensing relative humidity

Nominal Battery Life

10 to 15 years

Operating Temperature

32 to 120 °F

0 to 49 °C

Replacement Battery

One CR123A


1.90 ounces

54 grams
